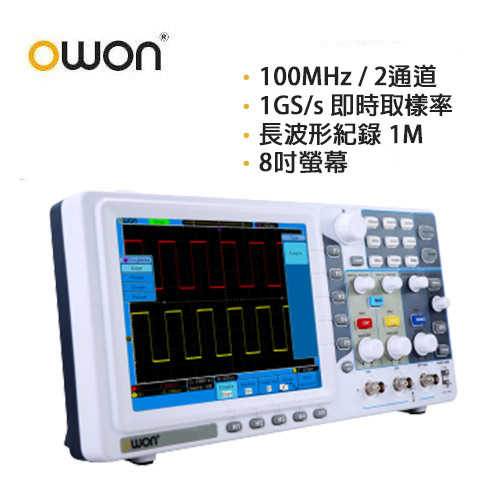

OWON 100MHz 2通道 數位儲存示波器 SDS7102E(VGA) 性能限定版

$13,000
即時排隊人數

全站優惠

領券

物流

達門檻免運
運費 ${{DeliveryLowPrice}}-${{DeliveryHighPrice}}
{{mode.Name}} (按重量收費)
支援雙北地區當日配達 詳細說明
{{mode.Name}} (按重量收費) ${{mode.PostFee}}

付款

分期

  • {{bank.Installment}}期{{bank.BuyerInterestRate}}利率 ${{bank.Amount|number:0}}
查看合作銀行
即時排隊人數
購物橘子
交易安全
安心金流服務,商品寄送後買家對訂單無疑慮,10 天後購物橘子才會將交易款項撥款店家
良興EcLife購物網
良興EcLife購物網
  • 店鋪評分
    5.0
  • 商品數 4753
  • 出貨天數 {{2.0}}天
  • 敲敲話 {{100.0}}%
  • 取消率 {{13.6000}}%
逛逛店鋪

本店由購物橘子平台提供電子發票
具政府立案公司行號
公司名稱:良興股份有限公司
公司統編:54708191
不論您是需要電腦3C商品或是專業電子商品,找良興就對啦!這種肯定和信賴來自於我們堅持先認真了解顧客需求,努力幫您找到對的合適的好商品,也來自於每個良興人都喜歡雞婆地、熱情地、多做一點點,把客人當好鄰居好朋友,因為「良興用心 感動您心」。
  • {{ goods.GoodsName }}
    ${{ goods.SpecialPrice.toLocaleString() }} ${{ goods.Price.toLocaleString() }}

商品詳情

商品簡述

+ 第二代經濟便捷數字示波器
+ 高頻,高取樣,長紀錄10K
+ 波形錄製回放功能
+ 通過/失敗功能
+ 螢幕VGA同步輸出
+ 支持電流量測(可選購電流探棒)
+ 支持數位濾波/ FFT
+ 支持SCPI編程控制
+ 8英寸TFT(真彩色液晶顯示)800×600高分辨率

商品詳情

1. 8 inches large display
8 inches  (800 x 600) TFT high resolution LCD display much detail. Horizontal 15 divisions and vertical 10 divisions, perfect than same level product.

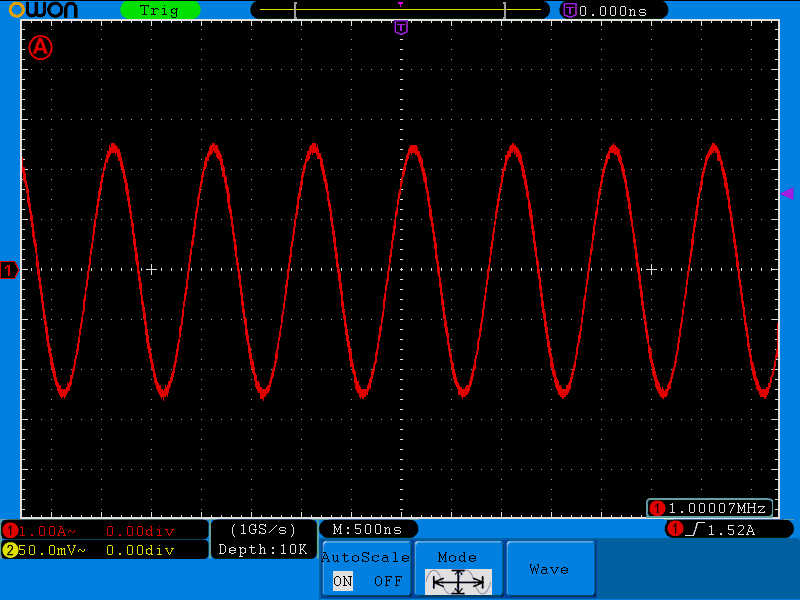

2. Auto-scale function
While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

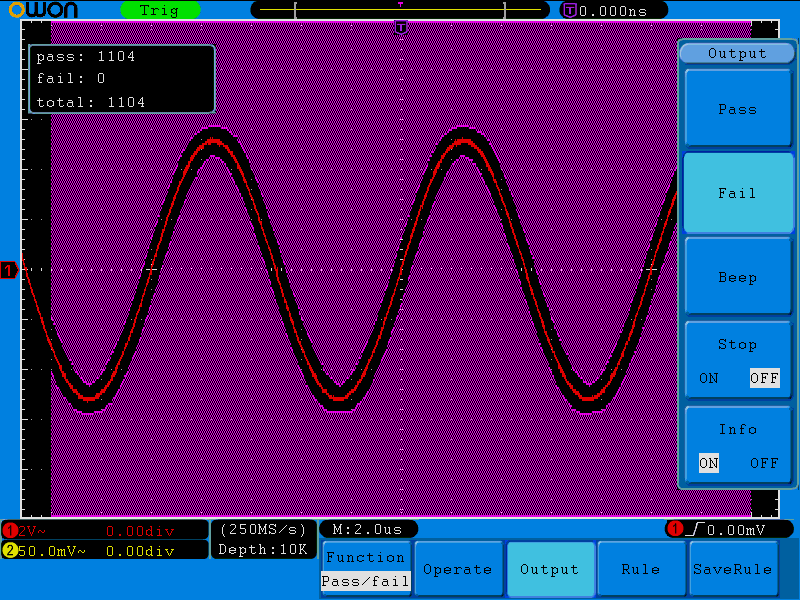

3. Pass/Fail function
Pass/Fail function can compare the template signal edit by user (horizontal and vertical occupation) with input signal. Meet the requirement for long-term signal monitor, production monitor, filter and control.

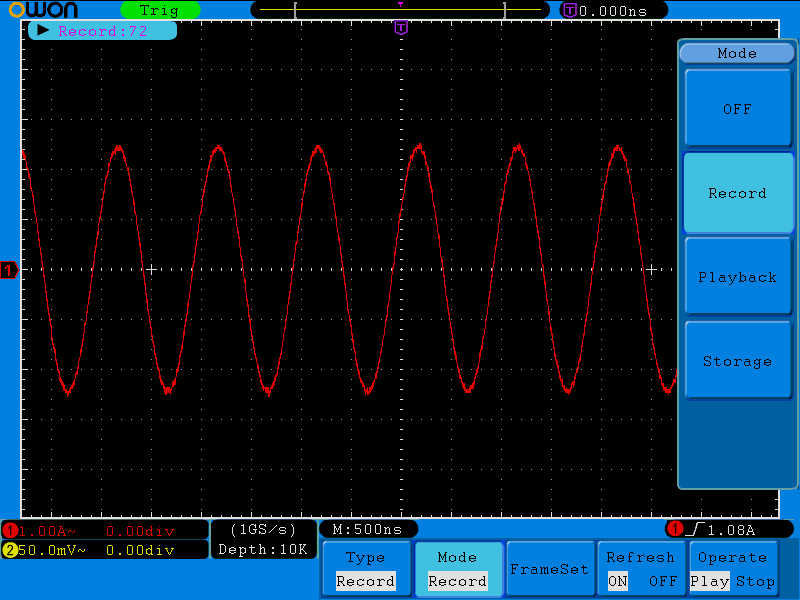

4. Waveform Record/Play
SDS series waveform record/play function support 2-channel waveform record. Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replay to analyzer the detail.

Specifications
Model SDE7102E(EV)
 Bandwidth 100MHz
 Sample Rate (real time) 1GS/s
 Horizontal Scale (s/div) 2ns/div~100s/div,
step by 1~2~5
 Channel 2 + 1 (external)
 Display 8" color LCD, 800 × 600 pixels
 Record Length 10K
 Vertical Resolution (A/D) {{ descCutOffStatus ? '收合內容' : '展開更多' }}

商品規格

Model SDS5032E SDS5052E SDS6062E SDS7102E
 Bandwidth 30MHz 50MHz 60MHz 100MHz
 Sample Rate (real time) 500MS/s 1GS/s
 Horizontal Scale (s/div) 5ns/div~100s/div, step by 1~2~5 2ns/div~100s/div,
step by 1~2~5
 Channel 2 + 1 (external)
 Display 8" color LCD, 800 × 600 pixels
 Record Length 10K 10K 10K
 Vertical Resolution (A/D) 8 bits (2 Channels simultaneously)
 Vertical Sensitivity 5mV/div~5V/div (at input) 2mV/div~10V/div (at input)

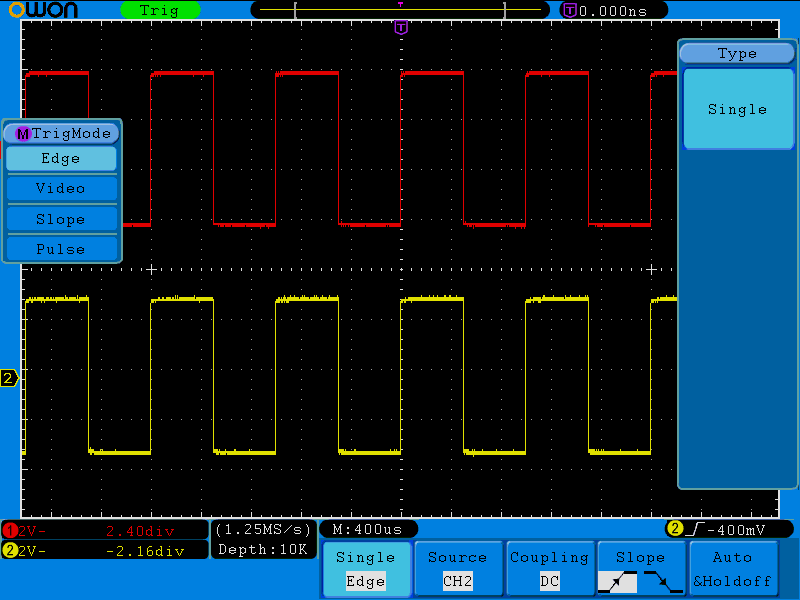

 Trigger Type Edge, Pulse, Video, Slope, and Alternate
 Trigger Mode Auto, Normal, and Single
 Waveform Math +, -, ×, ÷, invert, FFT
 Communication Interface USB host, USB device, Pass / Fail, LAN, and VGA (台灣出貨為標配)
 Battery not supported
 Dimension (W×H×D) 348 × 170 × 78 (mm)
 Weight (without package) 1.50 kg

10K
